Harris Cyclery Hubs:
Axles	Bearings	BMX Hubs	Brake Hubs
Fixed (Track) Hubs	Front Hubs	Generator (Dynamo) Hubs	Internal Gear Hubs
MTB Hubs	Road Hubs	Singlespeed Hubs	Tandem Hubs
Custom Wheelbuilding

We are a small shop, and can't always stock all of these items,
but when we don't have them in stock,
we can get them reasonably promptly.

We ship hard-to-find parts, tools and accessories all over the world

Front Hubs

Some front hubs are listed in the various categories linked to the grid above, but the categorization of hubs doesn't much apply in practice to front hubs.

See also the MTB Hubs and Road Hubs sections.

BMX Hubs

See the QBC Special Order Catalogue



Disc Brakes-Hydraulic

See the QBC Special Order Catalogue



Disc Brakes-Mechanical

See the QBC Special Order Catalogue



Disc Brake Parts

See the QBC Special Order Catalogue

Internal Gear Hubs

(See also my article on Internal Gear Hubs.)

This category has been moved to its own Internal Hub Page

Rohloff | Shimano | SRAM/Sachs | Sturmey-Archer

MTB hubs

Unless otherwise specified, MTB rear hubs have 135 mm spacing. All fronts have 100 mm spacing.

Shimano Price and weight includes skewer
Deore:
HUH530	Deore	M530 Front	32 hole	Silver	QR	$16.95
HUH531	Deore	M530 Front	36 hole	Silver	QR	$16.95
HUH532	Deore	M530 Rear	32 hole	Silver	QR	$36.95
HUH533	Deore	M530 Rear	36 hole	Silver	QR	$36.95
Deore XT:
HUH77	Deore XT	M770 Front	36 hole	Silver	QR	$44.95
HUH80	Deore XT	M770 Rear	36 hole	Silver	QR	$69.95
Other MTB Hubs	See listings in the Quality Bicycle Products Catalogue
Capreo (for small wheels, accepts 9 tooth sprockets.) Accepts Capreo cassettes only
HUH90	Capreo	FH-F7000 Rear	36 hole	Silver	QR	$49.95
Click here for more details on the Capreo system.

NOTE: Phil Wood hubs do NOT include quick-release skewers.
MTB
Type	Flange Diameter	Drilling	Axle Width	Axle Diameter	Price
Front suspension	67 mm	32 hole 36 hole	100 mm	15 mm QR	Special order only Email your inquiry
Front disc brake	67 mm	32 hole 36 hole	100 mm	15 mm QR	Special order only Email your inquiry
Front disc brake	67 mm	32 hole 36 hole	100 mm	20 mm	Special order only Email your inquiry
Rear Cassette (Shimano type)
135-8/9/10	76/63 mm	32 hole 36 hole	135 mm	15 mm	Special order only Email your inquiry
135-8/9/10 disc brake	76/63 mm	32 hole 36 hole	135 mm	15 mm	Special order only Email your inquiry

Road hubs

Unless otherwise specified, "Road" rear hubs have 130 mm spacing. All fronts have 100 mm spacing.

(Click here for retro models)

Sora 3300 8-/9-/10-speed (Current model. Rear accept 11 tooth sprockets) The Tiagra 4500 hubs have been in short supply so we brought in these OE packed Sora hubs (Made in Japan!):
HUH330	Sora	HB-3300 Front	36 hole	Silver		$19.95

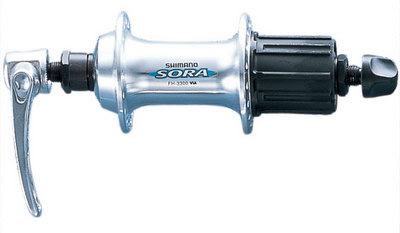

HUH336	Sora	FH-3300 Rear	36 hole	Silver		$36.95
Tiagra 4500 8-/9-/10-speed The best value available! (current model; rears accept 11 tooth sprockets):
HUH301	Tiagra	HB-4500 Front	32 hole	Silver		$23.95
HUH302	Tiagra	HB-4500 Front	36 hole	Silver		$23.95
HUH305	Tiagra	FH-4500 Rear	32 hole	Silver		$36.95
HUH306	Tiagra	FH-4500 Rear	36 hole	Silver		$36.95



Quando Thread-on Freewheel Hubs

Cassette Freehubs are really better, but if you want an old-style thread-on freewheel type hub, these are an excellent value.

126 mm spacing, works with standard thread freewheels, 5-, 6- or 7-speed.

Smoooooth sealed cartridge bearings #6000.

Aluminum construction, includes quick release skewer (exposed-cam type.)

HU119	Quando	Freewheel Rear	36 hole	Silver	$28.95
HU116	Quando	Matching Front	36 hole	Silver	$28.95

NOTE: Phil Wood hubs do NOT include quick-release skewers.
FSA Front hub	$115.95	32-36	100 mm	QR skewer not included Other spacings available at extra cost
FSA Cassette Hub 7-/8/9/10-speed	$359.95	32-36	130-135 mm
FSA Threaded Hub 7-speed	$139.95	32-36	130-135 mm
FSA Threaded Hub 8-speed	$139.95	32-36	130-135 mm

Tandem Hubs are now on a Separate Page-Click here.

Wheelbuilding

Wheels hand-built by Harris Cyclery

We build custom wheels, with care and attention to detail. Standard charges:

• $40 each for wheels with 36 or fewer spokes.
• $45 for 40 spoke wheels.
• $50 for 48 spoke wheels.
• $10 for cutting out and prepping a used hub.
• Butted spokes (generally) $1.00 each.

We will re-use your old hubs if you wish, but no used spokes nor rims.
