1999 Shimano WH-7700 wheels

Click thumbnail image for larger picture.

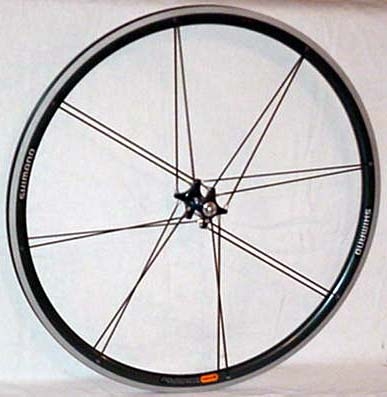

Front Wheel

739 grams without skewer

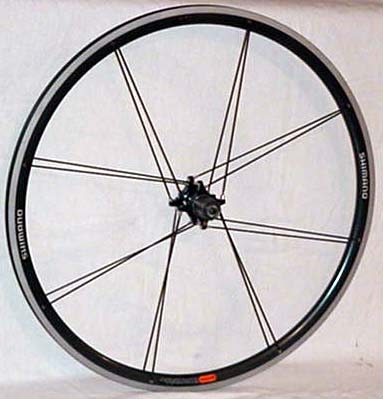

Rear Wheel

963 grams without skewer

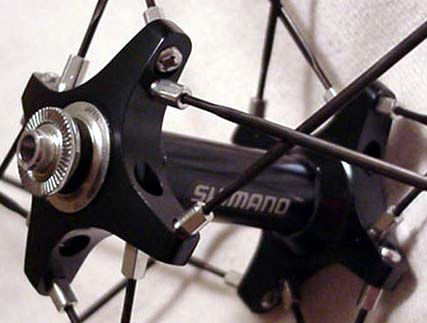

Front hub showing spoke crossing.

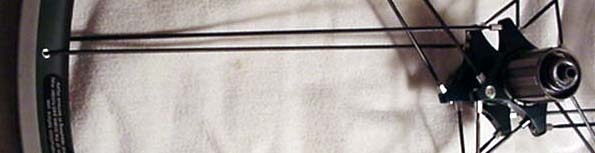

Spoke pairs from left and right flanges are approximately parallel.

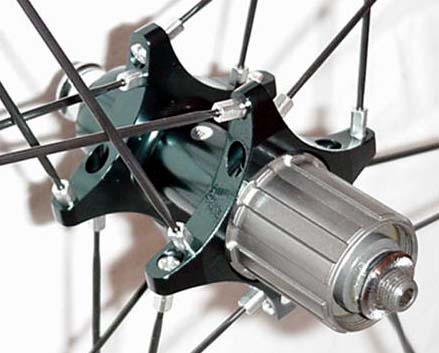

Rear hub uses a titanium cassette body.

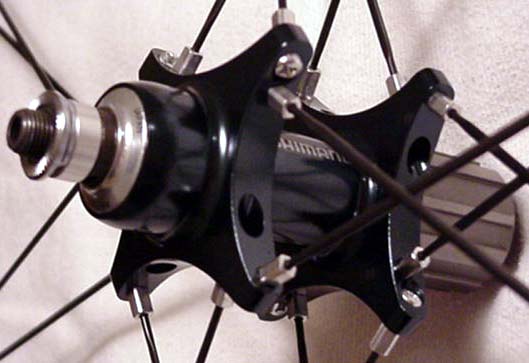

Rear hub showing oversized aluminum alloy nipples.


Brake track is bead blasted, not machined.

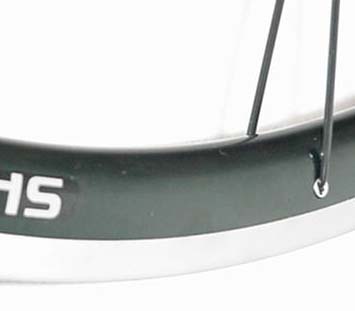

Seam is sleeved, not welded. Warning label covers joint.

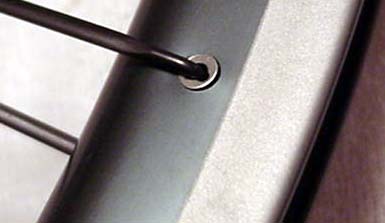

Spoke hole at rim shows some dimpling.

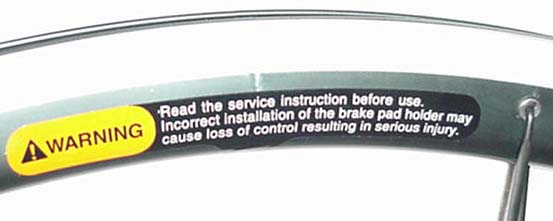

Warning! RTFM and adjust your brakes.
