Measuring hubs for indicator spindles

This article show how to determine the correct length of a Sturmey-Archer indicator spindle by measuring the axle and the position of the toggle key which shifts the hub. Read this article in connection with our main article about indicator spindles.

The effective length of an indicator spindle is from the base of the threads to the shoulder before the first link of chain (between the points of the green arrow in the image below).

Indicator spindle measurement

Most newer hubs need a thinner indicator spindle, like the one iin the image below. These spindles have a painted mark, which may be on the rod, or on the chain. The red arrow in the image indicates the length from the base of the threads to the mark. No matter where the mark is, the length which affects compatibility is from the base of the threads to the shoulder, same as with the thicker rod, as indicated by the green arrow.

Thin indicator spindle

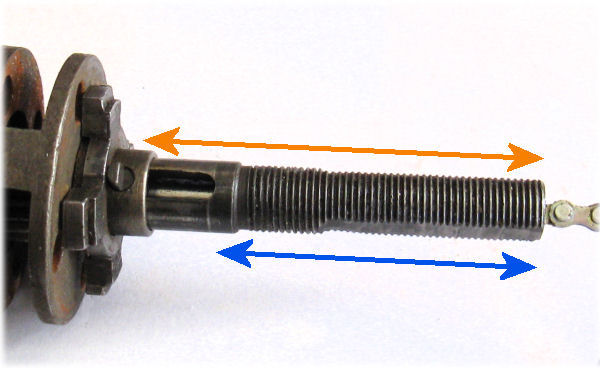

In the image below, the blue arrow shows what I call the solid-axle length and the orange arrow shows what I call the toggle-key depth (KD) -- measured to the rightmost extent of the toggle key, not to the flats. For clarity, the drawing shows the planet cage in place, but the measurement can also be taken without the planet cage. Just make sure that the clutch assembly is pushed as far onto the axle as it will go. The parts shown are from a classic AW 3-speed, but the principle is the same for other hubs.

The toggle-key depth can be measured with the hub completely assembled, by inserting a 13-gauge bicycle spoke into the end of the axle and measuring the insertion depth. A fatter rod could be used with a hub that uses a thick indicator spindle, but don't use a thinner spoke: it could pass through the threaded hole in the toggle key.

The solid-axle depth can be measured only on the bare axle.

Measurements for indicator spindle

Spoke Divider

Spoke Divider

Calculations

The correct length of the indicator spindle can be determined from the measurements, as follows

3-speed hubs

In older 3-speed hubs which accept the AW style fat rods, the correct (shoulder to shoulder) length is 'L' where

L = 'solid-axle length' + 5.7mm and
L = 'toggle-key depth - 7.7mm

In most newer, no-intermediate gear 3-speed hubs (not CS-series and not S3X)

L = solid-axle length' + 9mm
L= 'toggle-key depth - 7mm '

where

'solid-axle length' = the length from the RH end of the axle
slot to the RH end of the axle (measure on a bare axle) and

'toggle-key depth' = depth of toggle key when hub is set in the top gear (slackest control cable),
measured from axle end e.g., using vernier calipers.

5-speed hubs

The correct single toggle 5-speed control rod length appears to be given by;

L= KD-14mm (for dog locking sprinters and (W) hubs) and
L= KD-15mm (for ball-locking sprinters)

KD values for ball locking hubs are also less than dog lockers by about 4mm; thus similar-looking ball locking hubs require shorter
control rods than dog-locking ones, by about 5mm. Ball-locking 5-speed internals may be identified by a chamfer on the left end of the axle.

Other hubs

As noted, we don't have calculations for CS-series (hybrid-gearing) and S3X (fixed-gear) hubs, though our other article does identify and give lengths for indicator spindlesfor these hubs. Some newer hubs use rotary shifting: the cable rotates a pulley concentric with the axle, next to the sprocket.. These do not use an indicator spindle.
