We carry the very high-quality Wheels brand CrMo replacement/upgrade axles.In most cases, these are better than the original axles they replace.
Axles are sized by:
- Diameter. Common diameters include 8 mm, 9 mm, 9.5 mm and 10 mm, 5/16" and 3/8" (3/8" is generally interchangeable with 9.5 mm.)
- Length. Hollow axles for quick release skewers are usually 11 mm longer than the hub/frame spacing, so that 5.5 mm of axle sticks out past the ends of the locknuts, but you can get by with much less projection in a pinch.
- Thread pitch. This is measured either in TPI (Threads Per Inch) or millimeters per thread. (1 mm pitch = 25.4 TPI.)
Hollow (Quick Release) Axles:
Quick Release Front Part# Diameter Thread Length Spacing Price Fits HUA37 9 mm 26 tpi 110 mm 100 mm $21.95 Campagnolo and copies (Avocet, Ofmega, Miche, Zeus, etc.) Wheels #15 HUA39 9 mm 1 mm 110 mm 100 mm $9.95
Shimano, Suntour, Sansin, Surly, Suzue ProMax NJS (loose ball), Atom/Maillard Wheels #17 Quick Release Rear Part# Diameter Thread Length Spacing Price Fits HUA28 10 mm 26 tpi 141 mm 130 mm $16.95 Campagnolo and copies
(Avocet, Ofmega, Miche, Zeus, etc.)
Joy TechWheels #08 HUA29 10 mm 26 tpi 146 mm 135 mm #16.95 Wheels #08 HUA21 10 mm 1 mm 137 mm 126 mm $16.95 Shimano, Sun Tour, Sansin, Surly, Suzue (loose ball) Atom, Maillard Wheels #01 HUA23 10 mm 1 mm 141 mm 130 mm $11.95 Wheels #03 HUA24 10 mm 1 mm 146 mm 135 mm 11.95 Wheels #04 HUA25 10 mm 1 mm 158 mm 145 mm $21.95 Tandem HUA32 9.5 mm(3/8") 26 tpi 137 mm 126 mm $12.95 Taiwanese hubs including
Sovos Flip-Flop hubs and most Suzue models.Wheels #10 HUA33 9.5 mm(3/8") 26 tpi 141 mm 130 mm $12.95 Wheels #11 HUA34 9.5 mm(3/8") 26 tpi 147 mm 135 mm $12.95 Wheels #12
Solid (Nutted, "Bolt-on" type) Front Part# Diameter Thread Length Price Fits HUA36 9 mm 1 mm 155 mm $9.95 Shimano, Suntour, Sansin, Suzue (loose ball), Atom/Maillard Wheels #14 HUA38 9.5 mm(3/8") 26 tpi 155 mm $9.95 BMX Solid (Nutted, "Bolt-on" type) Rear HUA40 10 mm 26 tpi 174 mm $18.95 Campagnolo and copies (Avocet, Ofmega, Miche, Zeus, etc.) Wheels #18 HUA26 10 mm 1 mm 174 mm $10.95 Sansin, Shimano, Suntour Wheels #06 HUA43 10 mm 1 mm 187 mm $18.95 HUA38 9.5 mm(3/8") 26 tpi 155 mm $9.95 BMX (freewheel) HUA35 9.5 mm(3/8") 26 tpi 174 mm $13.95 Old Deore XT, BMX (freewheel) Wheels #13 HUA49 9.5 mm(3/8") 26 tpi 187 mm $13.95 BMX (freewheel), Tandem Wheels #33 HUA30 9.5 mm(3/8") 24 tpi 180 mm $9.95 Coaster brake, Skyway Wheels #34

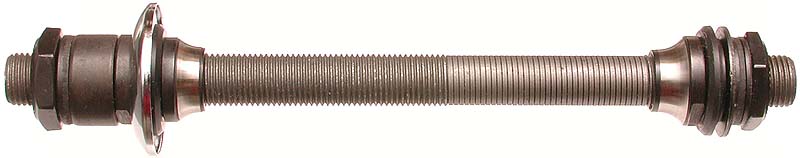

HUA19 10 mm 1 mm 146 mm 135 mm $9.95 Special Purchase! NOS Shimano Axle set, includes both cones, locknuts, spacers.
Not sure what model, probably older Deore Uniglide.Left cone diameter 16.5 mm, length 16 mm. Left cone dust cap diameter 29.5 mm (Dust cap is removable.)
Left side has a 2 mm and an 8 mm spacer.Right cone diameter 16.5 mm, length 9mm.
Right side has 4 washers, total stack 9mm, plus rubber seal ring. Japan.
Harris/Formula Track Rear Axles
These fit Harris Cyclery track hubs and other similar hubs manufactured by Formula, including I.R.O. Taiwan.
- Overall length 175 mm
- Shoulder-to-shoulder length 78 mm
- Bearing seat diameter 10 mm
- Threading 10 x 1.0 mm
Harris/Formula Track Rear Axles HUA07 $10.95
E.A.I. Track Axle Sets $59.95/Pair-Campagnolo Type
These made-in-USA axle sets include cones, locknuts and very nice track nuts. These fit most Campagnolo road (freewheel) and track hubs. The quality is very high, with beautifully ground/polished bearing surfaces..Sorry, we can only buy these in pairs, so we can't sell you just a rear.
E.A.I. axle sets complete 9 mm x 26 tpi front, 10 mm x 26tpi rear $59.95
More axles from the Quality Bicyle Products Special Order Catalogue
