Brake Cable Hardware

Adjusters | Cable Ends | Cable Clips | Straddle Cables

Cable Hangers f/Cantilevers | Ferrules/Crimps/Donuts | Yokes


divider

Brake Cable Hardware

Mickey Barrel Adjuster Conversion Kit CAH31 "Mickey" Barrel Adjuster Conversion Kit $3.95 Each buy button

This unit is intended to fit into a top-tube cable stop and provides a fingertip adjustment for your rear brake. This is very desirable on drop-bar conversions of bicycles originally built for upright bars (upright-bar brake levers usually incorporate a barrel adjuster, while drop-bar levers do not.)



DESCRIPTION

CAH59 Fork Crown Housing Stop $9.95 Each buy button

This unit allows you to use traditional cantilevers or center-pull cantilevers without a housing stop on the headset. It is designed to bolt onto the front of the fork crown. This can solve a number of problems, and can improve cable routing by letting the cable get around even a low handlebar stem without a sharp kink.

This is not intended for use with suspension forks. It may be possible to make it work with some suspension forks by mounting it on the upside-down "U" bridge that connects the legs, but it must not be mounted on the fork crown of a suspsension fork as it will cause unpredictable brake application as the fork responds to bumps.



DESCRIPTION

CAH60 Fork Crown Housing Stop $10.95 Each buy button

Similar to CHA59, above. Sleeker design. Includes cable adjuster and two recessed nuts of different lengths.






spoke


Hardware for Traditional Cantilevers and Center-pull Calipers.

BRH27 Cable Hanger (Front Housing Stop) $5.95 buy button

Fork mount housing stop Headset-mount front cable hanger (housing stop) for traditional cantilevers and centerpull caliper brakes.

Mounts on 1" threaded fork steerers. 3mm thick. Ideal for headsets with minimal stack height adjustment.

Can also be easily modified to fit 1" threadless fork steerers by filing off the little tab in the hole.

Includes adjusting barrel.

Steel, silver only.

BRH28 Alloy Cable Hanger (Front Housing Stop) $9.95 buy button

Fork mount housing stop Headset-mount front cable hanger (housing stop) for traditional cantilevers and centerpull caliper brakes.

Mounts on 1" threaded fork steerers. 5mm Thick.

Can also be easily modified to fit 1" threadless fork steerers
by filing off the little tab in the hole.

Includes adjusting barrel.

Silver

BR9999 Surly Long Rear Housing Stop $10.95 buy button

Seatpost Bolt mount housing stop Seatpost-bolt mount rear cable hanger (housing stop) for tradtitional cantilevers and centerpull caliper brakes.

This housing stop loops over the seatpost bolt between the "ears" of the seat lug/seatpost clamp.

Includes adjusting barrel.

This is rather long (76.5mm), which is good news and bad news:

Stainless Steel with aluminum adjusting barrel.

Click here to see BR9999 in use

BRH29 Dimension Rear Housing Stop $5.95 buy button

Seatpost Bolt mount housing stop Seatpost-bolt mount rear cable hanger (housing stop) for tradtitional cantilevers and centerpull caliper brakes.

Mounts on seatpost bolts up to 6 mm in diameter. If your seatpost bolt is thicker, you'll need to drill or ream the hole out larger.

The tab that goes onto the seatpost bolt is 3 mm thick, make sure there's room to fit it between the "ears" on your bike.

No provision for an adjusting barrel. Adjustment screw on the bottom is primarily to adjust the angle for smooth cable routing.

Aluminum

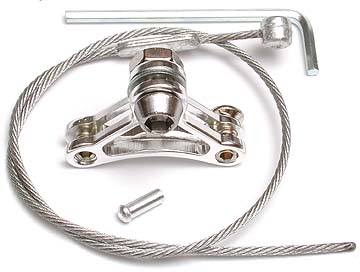

Tektro Deluxe Yoke Silver BRH05 $6.95 buy button

DESCRIPTION
These premium quality cable yokes are a great choice for traditional cantilever and centerpull caliper brakes.
The two small grub screws let you secure the transverse cable so it won't slide. This helps keep the brakes centered.

Sold individually. Each comes with a single-ended, braided transverse cable, 2.5 mm Allen wrench for the grub screws and a cable crimp.

The Phillips head screw on the back side is for securing the excess brake cable.








Straddle Cable For Older Centerpull Road Brakes CAB058 $2.95 buy button

DESCRIPTION
These short (110mm) straddle cables fit older center-pull road brakes and some U-brakes.

Great for old Weinmann and Dia-Compe Brakes.




DESCRIPTION

Straddle Cable For Cantilever Brakes CAB052 $2.95 buy button

380mm single-ended straddle cable fits most cantilever brakes.

Allows mechanical leverage to be setup as needed.

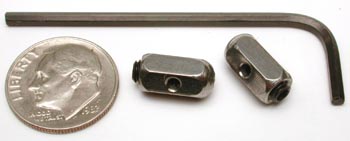

BRH19 Odyssey Cable Knarps $5.95/pair buy button

Odyssey Cable Knarps
These bolt-on cable ends can solve a number of problems. They're primarily intended to fit into upright-handlebar brake levers.

We mainly feature them for replacement of old-style Raleigh double-ended brake cables.

Allen wrench shown included. Dime $.10 extra.


  Cable clips

CAB525 Stainless Steel Cable Clip Set $9.95 buy button

Set of three traditional brake cable clips.

Fits 1" top tube. Nuts and bolts included.



spoke

Need a good cable cutter? Click Here!

spoke

More Cable Doodads from the Quality Special Order Catalogue
