Think of this frameset as the"1x1 " ® of
the 'cross world Use your imagination, get surly, and live it up a little!
Available in 50-60 cm sizes in 2cm increments.
$410

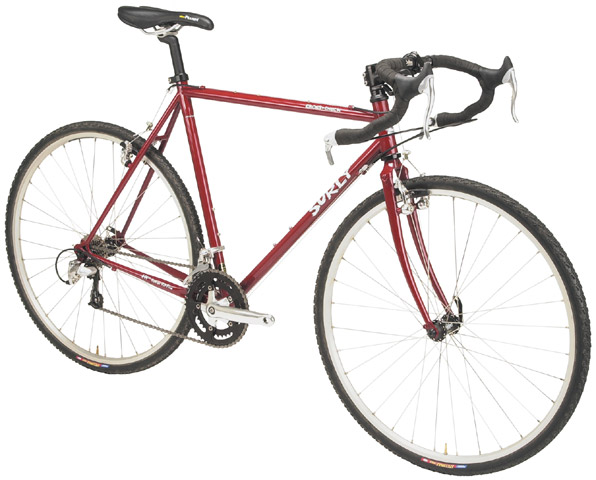

NEW! Now available as a complete built-up bike
Built-Up Bike Specifications:
Substitutions available
Component |
Type
|
Description
|
Frame |
Surly Cross-Check |
100%
Surly 4130 Cro-moly steel. Double-butted main triangle. TIG
welded. Blood Red. |
Fork |
Surly Cross-Check |
100% cro-moly, lugged + brazed crown. 1 1/8” threadless steerer. Bean-Green and Blood Red. |
Headset |
Ritchey
Logic Comp |
1
1/8" threadless, w/15 mm spacers Black |
Stem |
Tahoma |
1
1/8" threadless. Forged. Black |
Handlebars |
Salsa
Moto Ace Bell-Lap |
26.0 mm
clamp diameter. Black |
Handlebar
Wrap |
Co-Union
Cork Mix |
Feels
good. Black |
Brake
Levers |
Shimano |
#BLR-400
aero |
Brakes |
Tektro
Cantilevers |
#862A
Silver |
Cable
Hanger Front |
Tektro |
#1271A
Includes routing noodle. Black |
Cable
Hanger Rear |
Dia-Compe |
#1266
Silver |
Shift
Levers |
Shimano
Bar-End |
#SL-BS77
9-speed |
Shift Cable
Adjusters |
Jagwire |
#CC-233
Microadjuster |
Front
Derailleur |
Shimano
Tiagra |
#FD-4400
Double |
Rear
Derailleur |
Shimano
Tiagra |
#RD-4400-GS
Mid-cage |
Crankarms |
Cyclone |
110 mm
BCD Silver |
Chainrings |
QBP
Engagement Rings |
36
x 48t |
Pedals |
NOT
INCLUDED |
NOT
INCLUDED |
Bottom
Bracket |
Shimano
Deore LX |
#BB-UN52
68x113 mm |
Seatpost |
Kalloy
Uno |
27.2x250 mm
Black |
Seatpost
Clamp |
Kalloy |
Black |
Saddle |
Velo
Endzone |
Steel
rails, vinyl cover. Black |
Cassette |
Shimano
Tiagra |
#HG-50
9-speed
12-3-4-5-7-9-21-23-25T |
Chain |
Shimano
HG-72 |
9-speed
compatible |
Hubs |
Shimano
Deore |
#HUM510
32 hole
100 mm O.L.D. front
135 mm O.L.D. rear Black |
Spokes |
Stainless
Steel |
Straight-gauge 14 w/brass nipples |
Rims |
Alex |
#AL-DV15.
32 hole x 700c Silver |
Tires |
Ritchey
SpeedMax Cross |
700x32c
Wire bead. Black wall |
Tubes |
Cheng
Shin |
Standard
presta valve 700x35c |
Extras: Clear chainstay protector. Die-extruded cables with anti-rattle donuts. |
|
42 cm |
46 cm |
50 cm |
52 cm |
54 cm |
56 cm |
58 cm |
60 cm |
Seat Tube
Inches
mm
(Center-Top) |
16.5
420.0 |
18.1
460.0 |
19.7
500.0 |
20.5
520.0 |
21.3
540.0 |
22.0
560.0 |
22.8
580.0 |
23.6
600.0 |
Top Tube
Inches mm
(Effective)
|
20.6
522.0 |
20.8
528.8 |
21.3
541.8 |
21.5
547.1 |
22.0
560.0 |
22.4
570.0 |
22.8
580.0 |
23.6
600.0 |
Head Tube
Angle
degrees
|
72.0° |
72.0° |
72.0° |
72.0° |
72.0° |
72.0° |
72.0° |
72.0° |
Seat Tube
Angle
degrees
|
75.0° |
74.5° |
74.0° |
73.5° |
73.0° |
72.5° |
72.5° |
72.0° |
Bottom Bracket
Drop
Inches mm
|
2.6
66.0 |
2.6
66.0 |
2.6
66.0 |
2.6
66.0 |
2.6
66.0 |
2.6
66.0 |
2.6
66.0 |
2.6
66.0 |
Chainstay
Length
Inches mm
|
16.5
420.0 |
16.5
420.0 |
16.5
420.0 |
16.5
420.0 |
16.5
420.0 |
16.5
420.0 |
16.5
420.0 |
16.5
420.0 |
Wheel
Base
Inches mm
|
39.0
989.9 |
39.1
991.9 |
39.6
1005.3 |
39.6
1006.0 |
39.9
1014.4 |
40.1
1019.8 |
40.6
1030.0 |
41.1
1044.8 |
Stand Over
Height*
Inches mm
|
28.8
731.9 |
29.6
750.7 |
30.3
769.4 |
30.6
778.4 |
31.2
793.0 |
31.9
810.7 |
32.7
829.9 |
33.4
847.4 |
Head Tube
Length
Inches mm
|
3.6
91.0 |
3.6
91.0 |
3.6
91.0 |
3.6
91.0 |
4.0
102.0 |
4.8
121.0 |
5.6
141.0 |
6.3
160.0 |
Fork
Length
Inches mm
|
15.7
400.0 |
15.7
400.0 |
15.7
400.0 |
15.7
400.0 |
15.7
400.0 |
15.7
400.0 |
15.7
400.0 |
15.7
400.0 |
Fork
Rake
Inches mm
|
1.7
44.0 |
1.7
44.0 |
1.7
44.0 |
1.7
44.0 |
1.7
44.0 |
1.7
44.0 |
1.7
44.0 |
1.7
44.0 |
*Measurements
use tire with 685 mm outer diameter (Ritcheyª 700c x 30 SpeedMaxª),
and taken from middle of top-tube to level ground. |
Size |
Weight |
Fork |
42cm |
23.3 lbs |
2.26lbs |
46cm |
23.5 |
2.26lbs |
50cm |
23.7 |
2.26lbs |
52cm |
23.8 |
2.26lbs |
54cm |
23.9 |
2.26lbs |
56cm |
24.0 |
2.26lbs |
58cm |
24.2 |
2.26lbs |
60cm |
24.4 |
2.26lbs |
