Shimano Dura-Ace Compatibility
Translation of this article:
French FranceQuebec flag

German German flag
find us on FB
Sheldon Brown photo
by Sheldon "Mix 'n' Match" Brown
updated 2010 by John "above my price point" Allen
Spoke Divider
Shimano Dura-Ace bicycle parts have some compatibility issues when used with other parts. There is a lot of confusion and misinformation about this. This article explains the differences, and how to work around compatibility problems.

Dura-Ace History

The Dura-Ace name goes back to at least 1973 You can see the 1973 Dura-Ace Catalogue here.

You can also see the 1982 Shimano Dealer Catalogue here.

Dura-Ace was always Shimano's attempt to make a top-of-the-line parts group, but it was not really successful until 1984.

In 1984, Shimano introduced Dura-Ace S.I.S. (Shimano Indexing System) the first successful indexed-shifting system. It was a 6-speed system with indexed shifters mounted on the down tube.

As with any new product, once it was in regular use, minor problems came to light, and they were rectified in later versions. One of the risks of buying into a brand new system is that you are, to some extent, a guinea pig. All of the compatibility problems associated with older Dura-Ace parts result from genuine improvements that Shimano made after the original introduction.

Since the original Dura-Ace was represented as the top-of-the-line possible with 1984 technology, Shimano had a bit of a problem explaining changes in compatibility. Shimano didn't want to obsolete earlier Dura-Ace versions and leave its customers stuck with orphaned equipment, but also wanted to keep improving products. The marketing department tried to pass off the differences as signs of Dura-Ace's higher quality vis-a-vis the lower priced systems.

Dura-Ace went through multiple generations, from 6-speed, through 7-speed and 8-speed through the 1996 model year.

1997 was a very big year for Dura-Ace. The system went to 9 speeds, and that was the most publicized change. In addition, however, the entire Dura-Ace system was redesigned and made to be inter-compatible with other Shimano components.

Spoke Divider

Spoke Divider

Derailers and Shifter Indexing

The major difference between pre-1997 Dura-Ace and the rest of the Shimano lines is the cable travel of the rear derailer. Old Dura-Ace used a shorter amount of cable travel per shift. This has to do with the geometry of the cable attachment. Since the cable moved a shorter distance per shift, effects of cable friction or inaccurate cable adjustment were magnified.

With the introduction of the 6-speed 600EX S.I.S. group, the cable attachment on the rear derailer changed, so that the cable had to move farther per shift. This change reduced cable tension, reduced the effects of cable misadjustment and friction, and generally made for a more forgiving system. The same geometry was adapted for 9-speed Dura-Ace when it was introduced in 1997. All subsequent S.I.S. groups match the travel of the 600EX, except the 10-speed "Shadow" XTR derailers and shifters, which have an even longer cable travel..

The yellow areas in the table below show where the the most common Shimano rear derailers won't work, or need a modified cable routing to work.

Index Interchangeability Chart

Shifter* Cassette/Freewheel Derailer
Dura-Ace 6 speed Shifter 6 speed Dura-Ace 1984-96
6-, 7-, or 8-speed
Or:
Other Shimano derailer with alternate cable routing (B)
Dura-Ace 7 speed Shifter 7 speed
Dura-Ace 8 speed Shifter 8 speed
Any 9 speed Shifter
Other 6 speed Shifter 6 speed Any 1997 or later Shimano Rear Derailer
Or:
Any S.I.S. Rear Derailer
Except pre-1997 Dura-Ace
and XTR Shadow series
Other 7 speed Shifter 7 speed
Other 8 speed Shifter 8 speed
Any 9 speed Shifter 9 speed
Any 10 speed Shifter
except Shadow
10 speed
Any 10 speed Shifter
except Shadow
9 speed Standard derailer with alternate cable routing (B)
10-speed Shadow shifter 10 speed XTR Shadow rear derailer

*This includes down-tube, bar-end and STI shifters. Most Shimano rear derailers index the same, and are equally compatible with different shifters that match the cassette to be used. Exceptions: pre-1997 Dura-Ace, and the Shadow series, which works only with Shadow series 10-speed shifters,

Spoke Divider

Spoke Divider

Alternate Cable Routing

If you need to use an older Dura-Ace shift lever with a newer rear derailer, there is an alternate cable routing that makes this compatible:

Alternate cable routing
DESCRIPTION DESCRIPTION

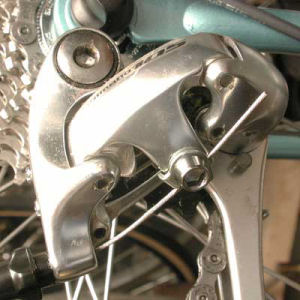

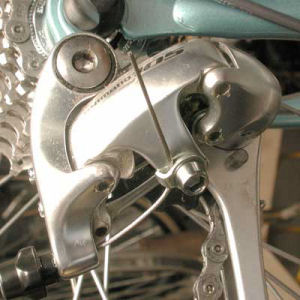

Standard Cable Routing (A) Alternate Cable Routing (B)

This alternate cable routing will also let you use a 10-speed shifter with a 9-speed cassette. This provides a convenient upgrade path.

Cassette Compatibility

Uniglide ®

Through 1989, Shimano cassette sprockets used a "twist-tooth" design, called "Uniglide." They had 9 identical splines (tabs) that would slide into matching grooves on the Freehub body. Spacer washers would fit between each pair of sprockets. 5- and 6-speeds used 3.65 mm spacers, 7-speed generally 3.1 mm, 8-speed 3.0 mm.

The smallest sprocket on a Uniglide cassette was not splined, it was threaded. The threads of this sprocket would hold everything else together.

The only functional difference between Dura-Ace and other Shimano cassettes is that the threaded Uniglide outer sprocket had a different thread in the Dura-Ace version. This was to permit the use of an 11 tooth sprocket with Uniglide Dura-Ace. Other Uniglide hubs/cassettes were limited to a 12 tooth minimum sprocket by the larger thread.

All Dura-Ace 6- & 7-speed cassettes were Uniglide style. 8-speed Uniglide cassettes and hubs were made only for the 1989 model year, so they are quite uncommon.

Uniglide vs Hyperglide
Uniglide ® Hyperglide ®

Hyperglide ®

In the 1990, Shimano introduced "Hyperglide" a new sprocket design that allows the chain to engage two adjacent sprockets simultaneously. It meshes with the new sprocket before it disengages from the old one. This results in smoother, quieter, faster shifting.

This is accomplished by shaping individual teeth differently on the same sprocket, and by forming ramps into the sides of the sprockets to facilitate downshifting.

Since the rotational position of the sprocket is critical to making Hyperglide work, threaded sprockets cannot be used. All sprockets in a Hyperglide cassette are splined, and a special lockring screws into internal threads on the Freehub body to hold the set together.

For more details on Uniglide/Hyperglide see my general article on Shimano Cassette Hubs



What To Do With An Old Dura-Ace 7- or 8-speed Uniglide Hub

Uniglide cassettes are no longer available. If you've got a Dura-Ace Uniglide hub and need a new cassette, these are your options:

Spoke Divider

Spoke Divider

Freehub Body/Hub Shell Compatibility

The Freehub body is the part the sprocket cassette mounts to. The Freehub body contains the ratchet mechanism that allows you to coast. For most purposes, the Freehub body is considered part of the hub itself, but, in fact, it is possible to remove it.

1996 and earlier

1996 and earlier (6-, 7- & 8-speed) Dura-Ace Freehubs require a threaded body: the aluminum hub shell has matching threads. This system is not interchangeable with anything else, but these Freehubs are all interchangeable with one another, so you can upgrade from 6 or 7 speeds to 8 by installing an 8-speed body.

This is a rather expensive part, but if your wheel is in good shape, this can be worthwhile. With the new body, you'll be able to use any 8-, 9- or 10-speed cassette that doesn't include an 11 tooth sprocket.

You'll need the special tool for this, TL-FH10.

As of 2010, both the body and the tool may be hard to find.

1997 and later 9-speeds

1997 and later (9-speed) Dura-Ace Freehubs have a spline attachment between the Freehub body and the aluminum hub shell. These use a hollow 10 mm Allen bolt to hold the Freehub body to the shell. This same system is used for most non-Dura-Ace Freehubs. Exceptions: "Silent Clutch" models.

2004-2007: 10 Speeds, Freehub Redesigns and Hollowtech II

In 2004, the crank and bottom bracket changed. The new crankset uses the "Hollowtech II" design pioneered with the previous year's XTR group (also shared with 2004 XT and Saint).

This system has the bottom bracket spindle permanently attached to the right crank, and uses "outboard" bearings that actually are located outside of the bottom bracket shell. This bearing placement permits the use of larger-diameter bearings, and thus a larger diameter, hollow spindle. It effects a considerable weight reduction with a claimed increase in stiffness.

This system has since "trickled down" to several lower-level Shimano groups. The bottom-bracket parts of these are all interchangeable.

This design has also been copied by other manufacturers, including Truvativ, again using compatible bottom bracket bearing assemblies.

2004 Dura-Ace (10-speed) 7800-series Freehubs were completely redesigned too. The Freehub body was attached to the axle, rather than to the shell, to save weight and to have the pawls act at a larger radius.

Also in an effort to save weight, the 2004 Dura-Ace Freehub body is aluminum.

Off Brand Aluminum Body Other manufacturers have used aluminum Freehub bodies, and it has been a problem because the steel sprockets can cut notches into the splines of such a soft material.

You see an example of this in the photo of an off-brand aluminum body here.

To avoid this problem, Shimano has made the first change in its spline pattern since the introduction of Hyperglide in the late '80s. Dura-Ace 7800 10-speed freehubs have taller splines than other Shimano models.

As a result, it is not possible to install cassettes other than 10-speed models on Dura-Ace 7800 hubs. It is not, however necessary to use Dura-Ace 10 speed cassettes. The Ultegra 10 speed cassettes also accommodate the taller splines of the 7800 hubs.

The interchangeability issue only applies to that particular hub design. The 10-speed cassettes will fit on any Shimano 8- or 9-speed Freehub with no problems.

The Ultegra 10-speed group introduced for the 2005 model year has no such limit for the standard hubs, but there is one Ultegra complete wheelset that shares this limitation.

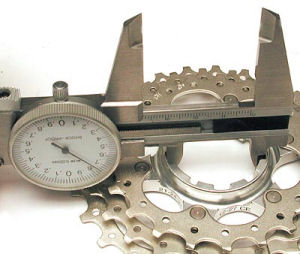

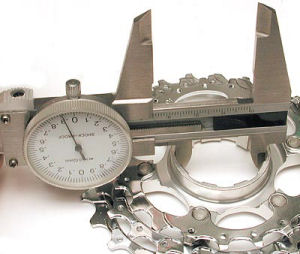

Shown below are parts of two Ultegra 12-27 cassettes. The 10-speed version on the left is over 37 mm in maximum inside diameter, while the 9-speed version is only about 35 mm in maximum inside diameter.

DESCRIPTION
DESCRIPTION DESCRIPTION

Dura-Ace 7850, 2008

For the 2008 Model year, Shimano introduced the Dura-Ace 7850 Freehubs . These have titanium Freehub bodies, and have reverted to the standard cassette spline pattern used on other Shimano Freehubs, so they will accept any Hyperglide cassette, 7-,8, 9- or 10-speed. The Freehub body attaches to the hub shell with a splined fitting with a larger diameter and larger number of splines than on other Freehubs.

Dura-Ace 7900, (2010 ?) (2011?)

The Dura-Ace 7900 Freehub is very much like the 7850, but most parts are not interchangeable.

Myths

Myth: If you have a 6-speed cluster, you need a 6-speed derailer.
Truth: No, the derailer itself doesn't care how many speeds there are. That's determined by the cluster and the shifter.
  • Dura-Ace 6-, 7- & 8-speed derailers are interchangeable with one another.
  • Non-Dura-Ace 6-, 7-, 8- and 9-speed derailers are interchangeable with one another, and with Dura-Ace 9- and 10-speed derailers.
Myth: Dura-Ace cassettes have a different spacing, and are incompatible with other derailers/shifters.
Truth: No, all Shimano cassettes and freehubs with the same number of speeds use the same spacing, and index with any system configured for the same number of sprockets.
Myth: If you have a Dura-Ace hub, you need to use a Dura-Ace cassette.
Truth: The only truth in this is that for the old Uniglide systems, the smallest (threaded) sprocket used a smaller thread diameter in the Dura-Ace version, and that aluminum 2004-2007 Dura-Ace Freehub bodies with tall splines will only take the Dura-Ace and Ultregra 10-speed cassettes with the deeper notches.

Spoke Divider

Spoke Divider

Chainrings

Type A & B Chainrings

Newer "Superglide" chainrings from Shimano use similar features to the rear Hyperglide system to improve front shifting. The outer rings have special shaped teeth here and there, called "gates" which make it easier for the chain to climb up. There are also steel pins riveted into the sides of the larger rings to help the chain climb.

When this system is working as it should, the chain makes a very smooth transition from small to large chainring with no slippage. For this system to work as smoothly as it is designed to, the locations of the teeth on the smaller ring should be specifically placed with regard to the positions of the teeth of the larger ring.

This requires that the chainrings be used in matched sets. Shimano has two "road" sets, designated "A" and "B".

Only Shimano is this fussy about chainwheel matching, and this is by no means mandatory. In particular, if your bike currently has an "A" set 53/42 and you decide you'd rather have a 39, this doesn't mean you need to replace the 53 as well. It will still shift, and shift well, just, perhaps, not quite as well as the designated set.

"9-speed" Chainrings

When the move from 8- to 9-speed took place, starting with 1997 Dura-Ace, a very slight change in chainring design occurred. Shimano was concerned about the potential for the chain to "skate" over the teeth of the small chainring.

"Skating" occurs when a narrow chain is used on a crankset intended for a somewhat wider chain. In downshifting, instead of the chain meshing properly with the teeth of the inner chainring, the side-plates of the chain can ride along the tips of the teeth of the small ring, causing a momentary "freewheeling" forward. If you are foolish enough to downshift the front while standing up, this skating could conceivably cause you to crash.

The difference between "9-speed" cranksets and older models is only in the inner chainring. The teeth on a "9-speed" inner ring are slightly displaced to the right to better accommodate the slightly narrower chain.

Shimano will tell you you need to replace the inner ring when converting an older bike to 9-speed. Their lawyers say that covers them if you're clumsy enough to hurt yourself due to "skating" and, besides, they make a nice profit selling the chainrings.

My advice is to not worry about this, and not to routinely replace the inner ring when upgrading to 9-speed. This type of "skating" is very rare, and mostly only happens if you're in top gear front and rear, then decide to downshift the front before downshifting the rear. There's no situation where this is a rational shifting sequence anyway.

Triple Chainrings

For the 2002 model year, Shimano introduced a triple chainring crank set in the Dura-Ace line, with corresponding STI shifters, front and rear derailers. While other Shimano "road" triples come with 52-42-30 chainrings, the Dura-Ace version comes with 52-39-30 rings. At first this seemed like a welcome upgrade, offering greater versatility to the road/touring cyclist.

Unfortunately, the way Shimano chose to do this is rather wrong-headed and retrograde, resulting in a crankset that is even less versatile than the 130/74 "road" triples in the Ultegra, 105, Tiagra and Sora lines.

Instead of using a crankset with two sets of mounting holes, as with other modern triple sets, the 30 tooth chainring attaches to the 39 tooth ring, rather than to the crank itself, in the manner of a Willow Triplizer or a TA conversion chainring. "Oh, great," you say, "so then you can retrofit the 39 onto other 130 BCD doubles!" Well, no. Unlike the Willow and TA conversion rings, the Dura-Ace is specifically designed NOT to fit a standard 130 double crank, because the "shelves" that support and center the middle ring get in the way. The "triple" Dura-Ace crank has had these "shelves" machined off flush, so it is the only crank that can accept this chainring, even though it does still use the standard 130 mm bolt circle.

But wait! It gets worse! Instead of using the standard 74 mm bolt circle for the 30 tooth chainring, as on all of other Shimano "road" triples, Shimano has seen fit to create a brand-new bolt circle pattern just for this application, 92 mm. Thus, there is NO other chainring besides the stock 30 that can be used with the Dura-Ace triple.

I'm generally very supportive of Shimano, but I'm really dismayed by the very unfortunate direction taken with the Dura-Ace triple. What ever made Shimano think the world needs a new bolt circle diameter?

Spoke Divider

Spoke Divider

Dura-Ace Timeline

Museum of Mountain Bike Art & Technology, Shimano Timeline

1973 Original Dura-Ace

1974 Dura-Ace Catalogue

1978 Dura-Ace EX

1982 Dura-Ace AX

Shimano 1982 Catalogue

1984 7400

6-speed S.I.S. shifting.

Details not currently available, information welcome.

1985

Details not currently available, information welcome

1986? 7401

Seven-speed Uniglide. Details not currently available, information welcome

1987

Details not currently available, information welcome

1988

Details not currently available, information welcome

1989 7402

8-speed Uniglide

1990 7403

8-speed Hyperglide, Superglide chainwheels

1991 7403

STI brake/shifters, Dual-pivot brakes

1992 7402

No change

1993 7402

PD-7410 SPD pedals, UN-91 Cartridge bottom bracket

1994 7402

FC7410 Low Profile SG-X cranks, HP-7410 Cartridge headset

1995 7402

1996 7402

SP-7410 seatpost

1997 7700

7700 9-speed. 7700 Splined crank/bottom bracket. Cartridge brake shoes. Major revision, eliminated compatibility issues with the rest of the Shimano line. With the move to 9-speed, derailer cable pull was standardized throughout the Shimano line.

1998 7702

1999 7702

Flight Deck cyclecomputer. 7700 SPD-R pedals.

2000 7702

2001 7702

2002 7702

Triple chainwheel option. Uses proprietary 30 tooth chainring, not interchangeable with anything else.

2003 7800

10 speed, Hollowtech II Two Piece crank/bottom bracket

The 7800 hubs had an aluminum body, with taller-than-normal splines. Only compatible with 10 speed cassettes

2008 7850

7850 Freehub with titanium body, goes back to standard cassette dimensions; larger-diameter spline system between cassette body and hub shell, accepts all Hyperglide cassettes: 7-. 8-. 9- & 10-speed.

2010 (?) 7900

7900 Freehub uses as similar spline system as 7850 to attach to the hub shell, but most hub parts are different. Accepts all Hyperglide cassettes: 7-. 8-. 9- & 10-speed.
