Headlights Taillights Generators/Dynamos
BatteryGeneratorMounts BatteryGenerator Tire DrivenHub/Wheel



Shimano Hub Generators and lights

Bulbs | Connectors | Headlights | Hubs | Plugs | Wheels



Shimano DH-3N80

32 Hole Model DH-3N80  HUH12  $139.95 buy button

The DH-3N80 is the new lightweight model in Shimano's power generating front hubs.

This new model is Ultegra quality level, with double contact bearing seals and highly polished bearing surfaces.
This results in very low drag and good weather resistance.

Requires No Batteries. No worries about battery charge level.

Low drag, weather protected. Drag with the Nexus is only slightly higher than with the much more expensive Schmidt hub.
But far less than with a tire sidewall generator when the light is turned on.

Shimano's Dyno hubs can power most 6 Volt lights.

  • Model: DH-3N80
  • Over Lock-nut Dimension: 100 mm
  • Axle Length: 108 (QR skewer included)
  • Spoke Hole: 32H
  • Weight: 490gm

  • spoke divider

    Shimano DH-T660

    New! 36 Hole Model DH-T660  HUH125  $119.95 buy button

    The DH-T660 a new lightweight model with the Deore LX logo.

    This is very similar to the DH-3N80 model, above. The main differences are single contact bearing seals and a steel axle (the 3N80 has and aluminum axle).

    Requires No Batteries. No worries about battery charge level.

    Low drag, weather protected. Drag with the Nexus is only slightly higher than with the much more expensive Schmidt hub.
    But far less than with a tire sidewall generator when the light is turned on.

    Shimano's Dyno hubs can power most 6 Volt lights.

  • Model: DH-T660-3A
  • Over Lock-nut Dimension: 100 mm
  • Axle Length: 108mm (QR skewer included)
  • Spoke Hole: 36H
  • Weight: 545gm
  • spoke divider

    Shimano DH-3R35


    New! 36 Hole Model DH-3R35 Rollerbrake® Compatible  HUH123  $119.95 buy button

    Other Rollerbrake® Dynohubs have been available in the past. This is the first in the better-quality "DH-3x" series.

    Rollerbrake® is not included.

    Requires No Batteries. No worries about battery charge level.

    Low drag, weather protected. Shimano's Dyno hubs can power most 6 Volt lights.

  • Model: DH-3R35NT
  • Over Lock-nut Dimension: 100mm
  • Axle Length: 108mm
  • Axle Type: Solid (9mm x 1 axle nuts not included)
  • Spoke Hole: 32H
  • Weight: 950gm

  •

    spoke divider

    DH-3N72 Model Silver

    Ultegra level QR dynohub. The 3N72 has even lower drag than the 3N71.

    Weight: 558gm

    32 Hole  HUH11A  $109.95 buy button

    36 Hole  HUH11     $109.95 buy button

    Shimano DH-3N71 Generator Hub




    spoke divider

    Alfine DH-S501 Model in Black. Disc Brake compatible.

    32 Hole   HUH08      $119.95 buy button

    36 Hole   HUH10A   $119.95 buy button

    32 or 36 hole. Basically the same as the new DH-3D72 above, but in black with Alfine logo. QR skewer included.

    This hub comes with a protective rubber cap over the disc mount, so even if you don't immediately plan to invest in a front disc brake, you can use it in the meantime.

    Shimano Alfine Generator Hub

    Alfine DH-S501 Model in Silver. Disc Brake compatible

    32 Hole   HUH07        $119.95 buy button

    36 Hole   HUH10E     $119.95 buy button

    Basically the same as the new DH-3D72 above, but with Alfine logo. QR skewer included.

    This hub comes with a protective rubber cap over the disc mount, so even if you don't immediately plan to invest in a front disc brake, you can use it in the meantime.

    Shimano Alfine Generator Hub

    spoke divider

    Shimano Center-Lock Adaptor   BRD124  $34.95/ea.  buy button

    The Shimano Center-Lock adaptor allows 6-bolt rotors to be used on Center-Lock hubs.

    Features and Information

    Center-Lock
    • Fits XTR, XT, LX, Deore and all Shimano Center-Lock patterned hubs.
    • Secures with cassette type lockring (use Park FR-5 lockring tool).
    • Simple, sleek design.
    Center-Lock Adaptor

    spoke divider

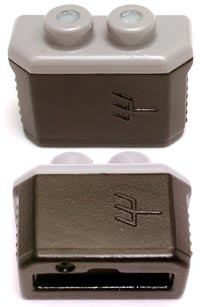

    Nexus Generator Connector Plug HU8216 $3.95 buy button

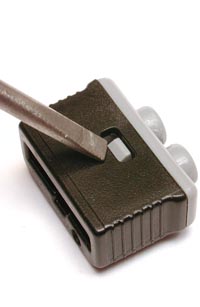

    One of these plugs comes with each Shimano Nexus generator hub, but if you need extras, we have them. Easy to install, as illustrated below:
    Shimano Nexus Generator Hub Wiring Diagram Shimano Nexus Generator Hub Wiring Diagram Shimano Nexus Generator Hub Wiring Diagram

    Shimano Nexus Generator Hub Wiring Diagram

    divider

    Additional Lights from the Quality Special Order Catalogue


    Generator Wheels

    Center-Lock Adaptor

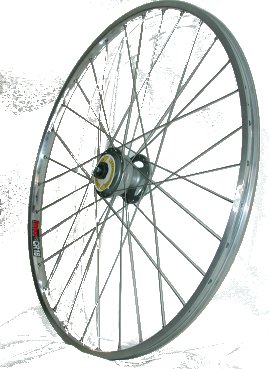

    WE898 700C Front Wheel, Alfine DH-S501 Hub / Sun CR-18 rim. $179.95

    • Silver (satin finish) rim. Silver hub.
    • Stock front wheels. Machine built by our supplier.
    • Built strong. 36 DT Swiss double butted spokes, brass nipples.
    • Sun CR-18 Rim. Presta drilled.
    • Ready for your tube and tire.

    Custom Wheelbuilding
