Rear Derailleurs from Harris Cyclery

Shimano

divider

Adaptor Claws | Cables | Derailers (Front) | Derailers (Rear) | Shifters

divider

A note about range:

Rear derailers are often differentiated into "road" and "mountain" models. This is actually a false distinction based on marketing hype. A more meaningful distinction would be:

RangeCage
Code
Cage
Length
Note
Wide
Range
SGS86 mm center-to-centerIf you want to use a rear sprocket bigger than 30 teeth, this is the type you must have.
The marketeers call this a "mountain" size, but that's a bogus designation. This is what you want for most touring applications.
Medium
Range
GS74 mm center-to-centerErroneously called "long cage" in "road" contexts, this is actually the medium length cage.
It is, however the longest that has the marketing designation "road."
Narrow
Range
SS50 mm center-to-centerRoad racing. SS cage derailers are not recommended for wide-range cassettes or triple cranks.

Generally, in the Shimano line, the wide-range models will handle up to a 34 tooth sprocket; medium-range models will handle up to 30 tooth sprockets, and narrow-range models will handle up to 28-30 tooth sprockets. Wider range models also have more chain takeup capacity, which makes them more compatible with wide range (triple) chainwheel sets.

A note about capacity:

Manufacturers have to assume that their customers are clueless, and will expect the chain to have some tension on it even in the bad gears where the chain is using small chainrings with small rear sprockets. Thus, the rated chain-wrap capacity is very conservative. A competent cyclist who uses the gears properly can generally exceed this by several teeth with no problem.

Most derailleurs also specify a maximum size rear sprocket. This is often a pessimistic value, based on the largest sprocket that is normally provided as part of that group.

How Many Speeds?

Rear derailleurs often are referred to as "7-speed", "8-speed" or "9-speed." This is not as important a distinction as it might appear. Current model derailers are pretty much interchangeable within brands. A "7-speed" or "8-speed" designation generall just indicates that the derailer is an older design, or a cheaper model. They'll all work with all 3 systems, though the models marked "9-speed" will generally be slightly better (whatever cluster you use.)

DESCRIPTION
Shimano Rear Derailleurs
(Work with most shifters. Check with us if you're not sure.)
ModelRangePriceLargest
Sprocket
Chain Wrap
Capacity
WeightShimano
Series #
Note
XT Shadow
Top Normal
Wide
buy button
3645 235 gRD-M772 DESCRIPTION
Deore SGS
Top Normal

Works with 10 speed STI shifters
& wide-range cassettes.

WideRD7592

buy button
3443 300 gRD-M591 DESCRIPTION

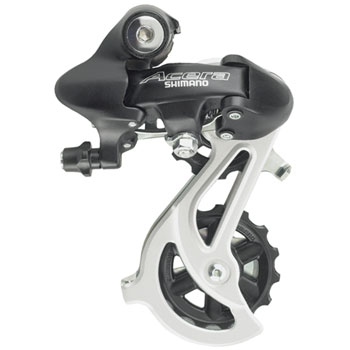

Acera SGSWide
buy button
3238 DESCRIPTION
Tourney MegaRangeWide
buy button
3440 DESCRIPTION
Tourney MegaRangeWide
buy button
3440 With
adapter claw
DESCRIPTION

Low-normal vs High(Top)-normal

Most rear derailleurs are pushed by a spring toward the highest (smallest) sprocket, and the shift cable pulls them toward the lowest sprocket. Shimano "Rapid Rise" rear derailleurs ( XTR Rapid Rise, Nexave T400, MegaRange Rapid Rise and Tourney Rapid Rise )work the opposite way, springing toward the lowest (largest) sprocket. This system provides slightly better downshifting, but can be confusing to a rider who is accustomed to high-normal derailleurs. Either type may be used with any contemporary Shimano shifter, but if you use a low-normal derailleur on a shifter made for high-normal, the indicator numbers will read backwards, and you will have to shift in the opposite direction. However, if you use a Rapid Rise derailleur with bar end shifters, both shifters will shift in the same direction ( up will be higher ).

Hanger vs Frame Mount

Some derailleurs include a built-in hanger, an adaptor claw that permits them to be attached to a frame that does not have a built-in derailer mount on the right dropout.

The adaptor claw's bolt and its special shoulder nut fit in the back of the axle slot. When normally installed, the left end of the wheel's axle will wind up near the middle of its axle slot.

This is normal. There are millions of bikes on the road using this system.

Adaptor claw
This dropout fits a standard derailleur This dropout requiers a derailleur
with a hanger,
or a separate adaptor claw
Adaptor claw
buy button
