Fixed Gear and Singlespeed Wheels
622 mm700C - 28/29 inch |
630 mm(27 inch) |
590 mm(26 x 1-3/8) |
559 mm(26 inch mtb) |
|---|
| Accessories | Bicycles | Parts | Specials | Tools |
|---|
622 mm700C - 28/29 inch |
630 mm(27 inch) |
590 mm(26 x 1-3/8) |
559 mm(26 inch mtb) |
|---|
"Fixed Gear" means a one-speed bike where the pedals move whenever the bike moves. You can't coast on a fixed gear, but it has real advantages. For lots more information about fixed gears, click here. We generally use the term "singlespeed" to refer to a one-speed bike with a freewheel, that is a bike that can coast without the pedals moving. For lots more information about singlespeed "coasties" click here. The wheels shown on this page have three different types of hubs:
- Singlespeed Freewheel hubs have a simple 1.37 x 24 tpi threading. You would screw a singlespeed freewheel onto the hub. The singlespeed freewheel is built into a sprocket, so you need to choose what size sprocket when you buy the freewheel. Freewheels are not included with the wheels, you need to buy them separately. Click here for singlespeed freewheels.
- Fixed Gear hubs have a double thread. There is a normal 1.37 x 24 tpi thread next to the spokes, and then it steps down to a smaller thread that will accept a separate lockring. The lockring is left-hand (reverse) threaded to keep the sprocket from unscrewing itself when you apply backward force to the pedals. Sprockets are not included with the wheels, you need to buy them separately. Click here for fixed gear sprockets.
Some of the hubs include the lockring, some don't. Click here for fixed gear lockrings.
Since both singlespeed and fixed gear hubs use the same 1.37 x 24 tpi threading, any fixed gear hub can also be used with a singlespeed freewheel.
- Flip-Flop hubs have freewheel thread on one side, fixed-gear threading on the other side. You can install a fixed sprocket on one side, and a freewheel on the other, or you can install two freewheels of different sizes, turning your singlespeed into a sort of two-speed.
The most common way to set up a flip-flop hub is with a fixed gear on one side, and a slightly larger freewheel on the other side (usually a 1 or 2 tooth difference.
The idea is to use the fixed gear most of the time, but to have the freewheel in reserve for longer rides, when you might be all tuckered out and still far from home. The lower freeweheel gear will make the climbs easier, and the fact that it is a freewheel will let you coast down the hills without spinning your brains out due to the lower gearing.
Spacing
The "spacing" refers to the space between the fork ends. Different frames have different spacing in back, anywhere from 110 mm to 135 mm or more. The width of the hub (usually measured from the outer faces of the locknuts) needs to match the frame spacing.Most of the hubs we sell can be modified to fit wider spacings by adding spacer washers between the cones and locknuts. It is also possible in many cases to adjust the spacing of the frame itself. See my Frame Spacing Article for details.
In general, mountain bikes will have 135 mm spacing, "road bikes 120 to 130, depending on their age, and track bikes 110 to 120 depending on their age. If in doubt, you should measure:
The spacing of a hub is measured from the outside faces of the cone locknuts, where they come into contact with the frame's fork ends. (Most cartridge-bearing type hubs don't have locknuts, so the spacing is measured from the equivalent shoulder surface of the axle ends.) The spacing dimension is commonly referred to as the "O.L.D." (Over-Lock-nut Distance)
This frame has a spacing of 125 mm
Chainline
The chainline is the horizontal distance from the centerline of the frame to the centerline of the chain. One of the major advantages of singlespeed and fixed gear bikes, as opposed to bikes with derailer gearing, is that the chainline is straight. This makes for a more efficient drive train (less friction, better power transmission.)To ensure good chainline, you need to make the front chainline (distance from frame center to the center of the chainring teeth) match the rear chainline (hub center to the center of the sprocket.) Generally you would want to get this within a millimeter or maybe two of the same front and rear.
For details, see my article on Chainline.
If you're using a "road" or "track" type frame, you are best off with a typical "track" chainline of about 42 mm. Most of the "track" hubs we feature will give a chainline in that vicinity.
If you're using a "mountain" type frame, however, 42 mm chainline usually won't work, because most mountain bikes have wider chain stays, so you generally can't fit a reasonable sized chainring that close in. For that reason, singlespeed "mountain" bikes usually use a 52 mm chainline, or in some cases, 47 mm.
In addition to custom wheels, we offer stock wheels, machine built unless otherwise indicated:Wheel Sets (Front and Rear):
Special!
Formula/Weinmann WE911 32 spoke
$199.95$179.95/Pair!
- Versatile Double-Fixed Formula hubs in Silver.
- Weinmannn DP18 Æro Silver rims (similar to Deep V)
- Front has machined(braking surface) sidewalls. Rear has non-machined sidewalls.
- 32 DT Stainless Steel Spokes.
Everyday Low Price!

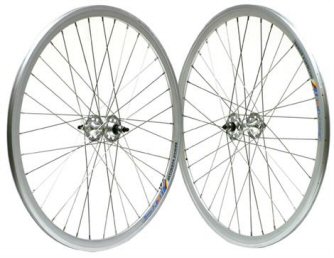

Formula/Weinmann WE913 32 spoke
$199.95$189.95/Pair!
- Formula Fixed/Free Flip-flop hubs
- Weinmannn DP18 Æro rims (similar to Deep V)
- Silver (non-machined sidewalls)rims and Silver Hubs.
- 32 DT Stainless Steel Spokes.
- We struck a deal with our supplier to keep this low price!
Everday Low Price!

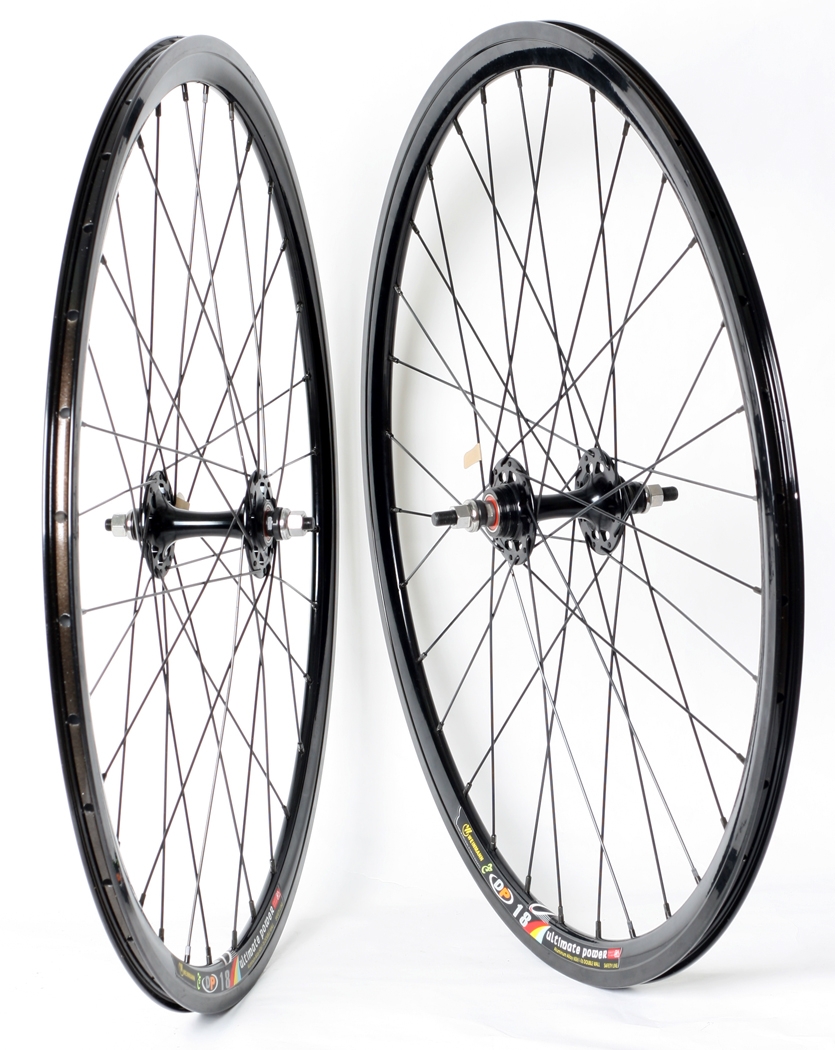

Formula/Weinmann "Black Beauty" WE914 32 spoke
$209.95$199.95/Pair!
- Formula Fixed/Fixed Flip-flop hubs
- Weinmannn DP18 Æro rims (similar to Deep V)
- All Black (non-machined sidewalls)Rims and Hubs.
- 32 DT Stainless Steel Black Spokes.
Formula/Velocity Black Hub/Spokes; White Deep V Rims Pairs Only
Sorry, we no longer carry this wheel set.
Back in Stock! Black Formula/Mavic CXP22 wheel set WE915 $215.95
Excellent value high-performance wheel set.
- Black Formula high flange fixed/free hubs
- Black Mavic CXP22 Semi-æro rims
- Black DT stainless steel spokes.
- 120 mm spacing, but long axles that can be built up to 126 or 130 by adding spacers.
Lock ring not included. Dura-Ace lockring
Back in Stock! Silver Formula/Mavic CXP22 wheel set WE917 $199.95
As above, but Silver hubs, spokes and rims.
Individual Pre-built Wheels:
Formula/Mavic Rear WE900 32 spoke $129.95
These use the gorgeous Formula flip/flop fixed/free hub (silver only), 32 or 36 DT Champion stainless spokes and Mavic Open Sport rim.
Formula/Mavic Rear WE901 36 spoke $129.95Lock ring not included in price. Dura-Ace lockring
Formula/Mavic Front WE902 32 spoke $124.95
Formula/Mavic Front WE903 36 spoke $124.95Front wheel, Formula 32 or 36 hole track hub, Open Sport rim, mate to fixed wheel listed above.Individual Wheels:
Harris Cyclery Hand-Built Wheels
Hand built in our shop.White Industries wheels now feature the ENO Eccentric hub with Splined fixed gear side!
White Industries ENO Eccentric hub with Mavic Open Pro - 700c (622 mm) rim $289.95
White Industries ENO eccentric hubs are beautifully finished, with silky smooth sealed cartridge bearings. Double sided, splined fixed/free rear hub in your choice of 126 mm or 130 mm spacing, with a 47 mm chainline; 32 holes. Mavic Open Pro rims are an our favorite high-performance road rims, with double walls and eyelets.The unique White Industries hubs have special eccentric titanium axle ends that allow the hub to move up to 15 mm so you can use them on a bike with vertical dropouts. Hubs are flip-flop, fixed/free, held by Allen bolts.
These hand-built wheels are light, strong and durable.
Lock ring not included in price Dura-Ace lockring
White Industries hubs are designed for 47 mm chainline.
White Industries ENO Eccentric hub with Mavic Open Sport (MA3) - 700c (622 mm) rim $269.95
As above, but with the popular Mavic Open Sport rim. 32 SpokesLock ring not included in price. Dura Ace Lockring
White Industries hubs are designed for 47 mm chainline.
New! White Industries ENO Eccentric hub with Mavic Asphalt A719 - 700c (622 mm) rim $289.95
As above, but with the welded, bomb-proof Mavic A719 Asphalt rim. 36 DT SpokesLock ring not included in price. Dura-Ace lockring
White Industries hubs are designed for 47 mm chainline.
New! White Industries ENO Eccentric hub with Mavic Asphalt A319 - 700c (622 mm) rim $269.95
As above, but with the rugged Mavic A319 Asphalt rim. 32 or 36 DT SpokesLock ring not included in price. Dura-Ace lockring
White Industries hubs are designed for 47 mm chainline.
White Industries ENO Eccentric hub with Sun CR-18 - 700c (622 mm) rim $249.95
As above, but with sturdy Sun CR-18 rim.Lock ring not included in price. Dura Ace Lockring
White Industries hubs are designed for 47 mm chainline.
These use the excellent Formula Sealed Cartridge Hub, DT stainless straight-gauge spokes and Sun or Weinmann aluminum alloy rim.
The Sun CR-18 is a sturdy double-wall rim with eyelets, 22.5 mm wide (18.5 mm interior width.)
Lock ring not included in price (Dura-Ace lockring
This wheel features the super-smooth Formula sealed cartridge bearing hub.
This wheel features the super-smooth Formula sealed cartridge bearing front track hub.
The Weinmann RM19 is a single-wall rim with no eyelets, 25 mm wide (19 mm interior width.)Lock ring not included in price. Dura-Ace lockring
This wheel features the super-smooth Formula/IRO sealed cartridge bearing hub.
This wheel features the super-smooth Formula sealed cartridge bearing front track hub.
Are you ready to convert your old Raleigh 3 Speed into a fixie or singlespeed?This wheel features the versatile Formula double-fixed hub that will accept a single freewheel or track cog on either side.
Sealed cartridge bearings. Silver rim and hub.
Our 27" Coaster brake wheel has been very popular.We've had requests for a 700C version - Here it is!
We will re-space this wheel for a small upcharge. Click cart button for details.
- Sun CR18 silver alloy rim - an industry workhorse!
- Genuine Shimano coaster (foot operated) brake hub
- 18 tooth sprocket included
- 36 stainless steel spokes
Got an old 27" wheeled bike? Singlespeed curious?Try this 27" singlespeed real wheel w/coaster brake on the cheap.
- Weinmann LP18 double-wall silver alloy rim
- Genuine Shimano coaster (foot operated) brake hub
- 18 tooth sprocket included
- 36 stainless steel spokes
This front wheel will match the WE262 above.
- Weinmann LP18 double-wall silver alloy rim
- Alloy quick-release hub (Skewer included)
- 36 stainless steel spokes
(135 mm spacing , 52 mm chainline. unless otherwise indicated)
White Industries ENO Eccentric hub with Sun CR-18 - 26" (559 mm) rim $249.95
White Industries ENO eccentric hubs are beautifully finished, with silky smooth sealed cartridge bearings. Double sided, Splined fixed/free rear hub in 135 mm spacing, with a 47 mm chainline; 32 holes. Sun CR-18 rims are an industry standard with double walls and spokehole eyelets.The unique White Industries hubs have special eccentric titanium axle ends that allow the hub to move up to 15 mm so you can use them on a bike with vertical dropouts, without the need for a kludgy chain tensioning pulley.
These hand-built wheels are strong and durable.
White Industries hubs are designed for 47 mm chainline.
White Industries ENO Eccentric hub with Silver Sun Rhyno Lite Rim - 26" (559 mm) rim $259.95
White Industries ENO eccentric hubs are beautifully finished, with silky smooth sealed cartridge bearings. Double sided, Splined fixed/free rear hub in 135 mm spacing, with a 47 mm chainline; 32 holes. Sun Rhyno Lites are fairly heavy at 550 grams, but they're super strong, and wide enough to give excellent service with wide, low pressure tires.The unique White Industries hubs have special eccentric titanium axle ends that allow the hub to move up to 15 mm so you can use them on a bike with vertical dropouts, without the need for a kludgy chain tensioning pulley.
These hand-built wheels are strong and durable.
White Industries hubs are designed for 47 mm chainline.
For 27 inch or 700c fixed-gear wheels, see the Wheels section or our Fixed-Gear Central page (fixed/track hubs also work perfectly well with singlespeed freewheels!)
ALso, don't forget the Freewheels and sprockets. We can help you decide what gear combinations to start with. Call or e-mail us!
Custom Wheelbuilding
Wheels hand-built by Harris CycleryWe build custom wheels, with care and attention to detail. Standard charges: |
 |
|---|
We will re-use your old hubs if you wish, but will not use used spokes nor rims.
- $40 each for wheels with 36 or fewer spokes.
- $45 for 40 spoke wheels.
- $50 for 48 spoke wheels.
- $10 for cutting out and prepping a used hub.
- Butted spokes (DT or Wheelsmith) $1.00 each.
If you bring in existing wheels to be rebuilt, add $10 per wheel for cutting the old spokes, cleaning and prepping your hub.
