Fixed Gear Central!

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels

Fixed-Gear Bicycles and Frames:

Bianchi | Gunnar | | Raleigh | New! Redline | Surly

The Redline 9•2•5

Note, Redline bikes are only available for direct sale at our shop in West Newton, Massachusetts.

Redline's super-versatile urban commuter fixed/free singlespeed--an unbeatable value!

The Raleigh Rush Hour
And the Rush Hour SE, modified by us for street use.

Note, Raleigh bikes are only available for direct sale at our shop in West Newton, Massachusetts.

Raleigh's "messenger friendly" Rush Hour is now in stock, come test ride one today!

The new Raleigh Rush Hour is a great choice for the urban fixed-gear fan. Some of its features,are: Comes with two brakes, but if you prefer not to use the rear brake the clamp on top tube cable guides are removeable for a clean look. All decals are applied on top of the clear coat, so if you prefer, the decals may be easily removed for the "stealth" look without damaging the finish. Unusually generous tire clearance for a bike of its type. Flip-flop rear hub with 15 tooth fixed gear and 16 tooth freewheel installed. Stock gearing is: Gain Ratio: 6.3 fixed, 5.9 free Gear Inches: 84.4 fixed, 79.1 free Meters Development: 6.8 fixed, 6.3 free Harris Cyclery SE Version Features: Upgraded Brake Shoes (Kool Stop Continental Salmon) Custom chainring size using Rocket Ring (The stock gearing is a bit tall for most street use. We recommend a smaller chainring.)

Sizes 50/53/55/57/59cm Colors Steel Gray Frame Chromoly Double Butted Track, CNC fork ends Fork Chromoly Track Headset Ahead 1-1/8 Crankset Truvativ Touro Track 48t Or custom size with SE model Bottom Bracket Sealed Cartridge Cog Set 16t Freewheel, 15t cog Chain KMC Z82 Hubset (F) Alloy Sealed 32h, Track (R) Alloy Sealed 32h, Track Spokes 14g Stainless Steel Rims Alex DC-19 w/CNC Side Tires Vittoria Zaffiro 700x23c Brakes Tektro Dual Pivot Brake Levers Tektro Road Pedals Road Pedals w/clips and straps (Stock pedals are pretty cheesy, mainly intended for test ride purpose. You'll want to upgrade these.) Handlebar Alloy Road Grips Raleigh Stem Alloy Ahead Seatpost Alloy Micro adjust 27.2mm Saddle Raleigh Road

Bianchi Pista

In stock! The Bianchi Pista
And the Pista SE, modified by us for street use.

Check out the Gunnar "Street Dog" Frameset

The Gunnar "Street Dog" frame is made in Wisconsin from Reynolds top-of-the-line 853 tubing. Its unique geometry makes it ideal serious fixed-gear use, whether for winter training, commuting, or just for fun!

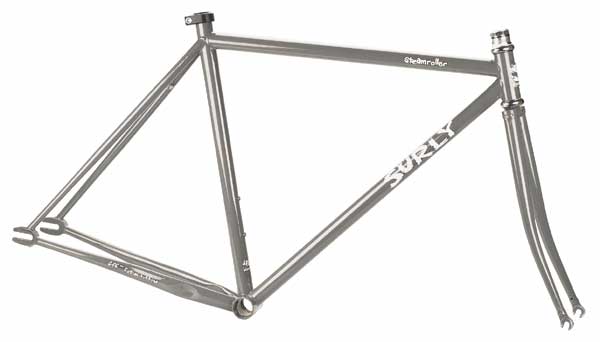

Surly Steamroller fixed-gear road frameset

TIG welded, double-butted CrMo frame with a gorgeous fork. The fork has a really nice investment-cast crown and socket-type investment-cast fork ends.

Unlike frames made for velodrome use, the Surly Steamroller has clearance for reasonable width tires, even a set of water bottle mounts.

Surly 1x1 Single Speed Mountain Frameset

More pix and details on our Surly 1 x 1 Page

See us for all of your fixed-gear cycling needs.

We ship hard-to-find parts, tools and accessories all over the world

We specialize in fixed-gear conversion of road and mountain bikes.

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels



Fork Ends (not Drop Outs ):

Surly track-style Fork Ends $27.95/pair These are traditional rear-opening fork ends. Despite their popularity, they're not the best choice, especially for road use. The rear-opening makes wheel changes harder. If installed level, as shown, on a bike with a rear brake, you'll need to re-adjust the brake shoes every time you change sprocket sizes.
Salsa Horizontal Drop Outs $58.95/pair Stainless steel with beautiful polished finish. Although these were made for derailer applications, there's nothing available that works as well for a fixed-gear road bike. You can cut off the derailer tab if that bothers you.

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels



Fixed-Gear Hubs have been moved to the New Fixed-Gear Hub Page

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels

Sprockets and Freewheels

Fixed gear sprockets are now listed on our Fixed-Gear Sprocket Page

Single-Speed Freewheels are now listed on our Singlespeed Page

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels

Tools

Fixed-gear tools are now listed on our Fixed-Gear Tools Page

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels

Nuts & Bolts



Track Nuts $7.95/pair

Track Nuts		Standard Serrated Flange Nuts

Proper track nuts have integral washers. They permit easier adjustment of chain tension, and hold the wheel in place better.

10 x 1 mm	$7.95	Fits Shimano, Surly rear hubs and most freewheel hubs.
9.5 x 26 tpi	$7.95	Fits Sovos and Suzue rear hubs shown on this page (Except for Suzue NJS)
9 x 1 mm	$7.95	Fits Shimano front hubs and most freewheel hubs.

These 9.5 x 26 tpi track nuts fit the Sovos and Suzue hubs we sell.

We also carry other sizes for other hubs.

Lock Rings

English/ISO Standard 1.29" x 24 tpi	Dura-Ace	FC001 $7.95	Standard size, fits Dura-Ace, Surly, Suzue, most other track hubs.
	Sun Tour	FC005 19.95	Works with 12 tooth sprockets
Campagnolo/Italian size 1.32" x 24 TPI	E.A.I. Campagnolo size	FC007 $12.95	Campagnolo size, also most other Italian brands, plus Phil Wood
	Phil Wood	FC006 $25.95	Works with 12 tooth sprockets
French Metric size 33 x 1.0 mm	Mavic	FC009 $12.95	Fits Mavic Ellipse and many older French-made hubs.
Right-threaded Bottom-bracket Lockring 1.37" x 24 tpi	FSA	CR5001 $4.95	Not a track lockring, this is a right-threaded 1.37" x 24 tpi lockring intended for old style bottom brackets. If you are using a single-threaded freewheel-type hub, this is better than nothing, though not so secure as a real track hub with a left-threaded lockring.

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels

Single Stack Bolts $6.95 set of 5

It looks really goofy to ride a fixed gear with a useless extra chainwheel on your crank. These track-style stack bolts are the right length to hold a single chainwheel to your crank. They fit all modern cranks.

3 mm Chainwheel Spacers $2.95 set of 5 For budget road-to-fixed conversions, a quick and dirty way to make the chainline work is by spacing the chainwheel inward from the crank spider. This is especially useful if you're using a hub made for a multi-speed freewheel, because it reduces the amount of re-dishing required.

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels

Chains and Links

Fixed gear and singlespeed bikes can use either ¹/₈" or ³/₃₂" chain.

Narrow (³/₃₂") Chains

This size is used on bikes with derailers, but is also excellent for fixed-gear bikes. This chain is lighter than the ¹/₈" size. We recommend this for most road fixed-gear/singlespeed applications.

³/₃₂" chains are listed on our Chain Page. We particularly recommend the SRAM (Sachs/Sedis) PC58.

NEW! 3/32" Half Links $3.95

If you are having trouble fitting the desired gears onto a bike with vertical dropouts, this link will let you add or subtract 1/2 a link (1/2 inch) from your chain, allowing you to move the axle 1/4" forward or backward. We never used to be able to get half-links for the narrow chain, this is a new item!

Wide (¹/₈") Chains

This size is traditionally used on track bikes and other bikes that don't have derailers. ¹/₈" chains are listed on our Wide Chain Page.

1/8" Half Links $4.95

If you are having trouble fitting the desired gears onto a bike with vertical dropouts, this link will let you add or subtract 1/2 a link (1/2 inch) from your chain, allowing you to move the axle 1/4" forward or backward. Different brands of chain have different diameter rivets; these links do not fit all 1/8" chains, but they do fit the models we sell.

Extra-Wide 1" x (³/₁₆") "skip-link" Chains

This size was formerly popular on track bikes, and classic coaster-brake bikes. Unfortunately, we don't currenty have a source for these, neither roller nor block type.

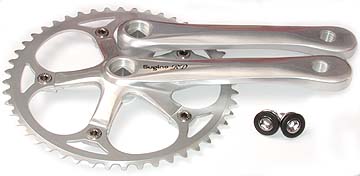

Cranks For Fixed-Gear/Singlespeed--Click Here!

For chainrings, see our 110 mm chainring listings.

Axles | Chains | Chainring Bolts | Cogs | Cranks | Frames | Frame Parts | Freewheels | Hubs
Lockrings | Nuts & Bolts | Pedals | Sprockets | Stack Bolts | Tools | Wheels

Why should you want a one-speed bicycle
that won't let you coast?
Read all about it!
