Sturmey-Archer Hubs

We love old three-speed bicycles, especially English ones.
We stock repair parts to help keep yours on the road.
We can help with hard-to-find parts and accessories and good advice.

We also have a page on Parts For Three-Speed Bikes,
other than Sturmey-Archer, including:

Brakes | Cotters | Hubs | Pumps |Rims | Seatposts | Saddles | Tyres & Tubes

We ship hard-to-find parts, tools and accessories all over the world

divider

Complete Sturmey-Archer Hubs:



DESCRIPTION

New!  S2C 2-Speed Duomatic kick-shift Hub $74.95 buy button

Another highly anticipated hub from Sturmey-Archer. The S2C with Coaster Brake

Kick-shift between gears without shift levers or cables.

1st gear = 100% (direct drive) 2nd gear = 138%

  • Coaster (back-pedal operated) brake
  • Color: Silver.
  • Uses standard 3-tab Sturmey/Shimano cogs (sold separately).
  • Drilling: 36 hole
  • Axle spacing: 116mm
  • Alloy hub shell
  • Weight: 1400g




  • They're Here!  S3X 3-Speed/Fixed Hubs

    DESCRIPTION

    The highly anticipated Sturmey-Archer S3X hub!

    Bar end shifter, inner cable, mounting hardware included. Cogs sold separately.

  • Color: Silver or Black.
  • Axle Spacing: 120mm (track and older road bikes) or 130mm (modern road bikes).
  • Drilling: 36 hole

  • 160% gear range
  • 1st gear = 62.5%
  • 2nd gear = 75%
  • 3rd gear = 100% (direct drive)

    Threaded driver will accept standard cassette type splined single cogs or single freewheels.

    Note: Genuine Shimano cassette and BMX cogs do not slide on easily to this driver.
    We recommend the Surly singlespeed cogs.


    S3X Silver w/120mm Spacing $239.95 buy button

    S3X Black w/120mm Spacing $239.95 buy button

    S3X Silver w/130mm Spacing $239.95 buy button


  • divider


    S-RF3 3-Speed Hub ZSRF3 $99.95 buy button

    DESCRIPTION
    Updated version of the classic AW, with aluminum shell, thicker spoke flanges to fit modern spokes.

    Includes twist shifter, cable, mounting hardware & 16t cog. 36 holes only.


  • Overall Range - 177%
  • Gear 1 - 0.75 (-25.0%)
  • Gear 2 - 1.00 (Direct Drive)
  • Gear 3 - 1.33 (+33.3%)
  • Axle spacing: 127mm
  • Axle length: 175mm

  • divider

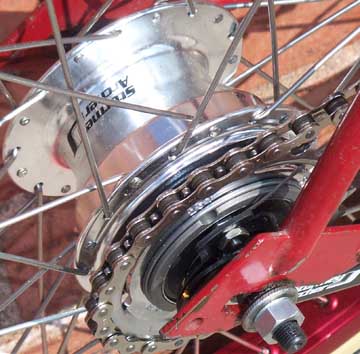

    X-RF8 8-Speed Hub ZHU82 $179.95 buy button

    DESCRIPTION
    This model offers direct drive and 7 higher gears, up to 325% of direct drive, making it especially suitable for use on small-wheel bikes.
    Over Locknut Dimension (rear spacing) anywhere from 115 to 135 mm, depending on what nuts/washers you use. It comes set for 124 mm with two 6 mm locknuts on the left end. You only need one locknut. If you remove one of the 6 mm locknuts, the spacing becomes 118 mm. If you replace the other locknut with a standard Sturmey-Archer 3 mm locknut, you can get it down to 115 mm.

    Includes shifter, cable, mounting hardware & 25t cog. 36 holes only.


  • Overall Range - 325%
  • Gear 1 - 100% (Direct Drive)
  • Gear 2 - 132%
  • Gear 3 - 148%
  • Gear 4 - 169%
  • Gear 5 - 192%
  • Gear 6 - 220%
  • Gear 7 - 250%
  • Gear 8 - 325%



  • divider


    DESCRIPTION

    X-FD Front Drum Brake Hub ZHU22 $69.95 buy button

    Formerly known as Elite/VT. Alloy shell 36 hole front hub with drum brake.

    Mounting hardware included. No brake lever.







    divider

    We have put the spare parts on a separate page....Click Here!
